World standard for professional use filled with advanced wireless technology True diversity for stable reception Display designed for precise grasp of current status EIA 19 inch rack mountable Voltage sensing switching power supply for 100V AC to 240V AC Tilt-type dipole antenna Equipped with OUTPUT MIXING switch

Specifications : Maxon Synth 5 Series - UR5D / UR5/UR5DF Wireless Receiver (UR5DF : front antenna type) Model No. UR5DAX (Dual channel) / UR5AX (Single channel) UR5DA (Dual channel) / UR5A (Single channel) UR5DJ (Dual channel) / UR5J (Single channel) Frequency Range 779.125MHz - 787.875MHz 125KHz steps 797.125MHz - 805.875MHz 125KHz steps 806.125MHz - 809.750MHz 125KHz steps Receiving System Double super heterodyne / True diversity Antenna Input Two 50 ohm BNC-J connectors(A, B) 9V DC 25mA (maximum) external antenna phantom power output Antenna Supplied 1/2 wavelength dipole antenna(CR493N) or optional external antenna RF Sensitivity 15dB micro V (S/N = 60dB min.) (with AF1KHz, +-20KHz FM) Squelch Sensitivity 12dB micro V Tone Frequency 38.4KHz Dynamic Range 103dB min. (IHF-A compensation, frequency deviation : +-40KHz) Residual Noise -93dBm max. (IHF-A) T.H.D. 0.5% max. (IHF-A, frequency deviation : +-10KHz) Frequency Response 40Hz - 15,000Hz (+-3dB) (with AF -40dB) Compander dbx Type II Balanced Output -10dBm 600 ohm XLR3-32 connector Unbalanced Output -10dB 5K ohms Standard 1/4 inch phone jack (0dB = 0.775Vrms) Operating Temperature 0 - 50 degrees centigrade Operating Range Approximately 50 - 100 meters (line of sight) from receiving antennas Power Supply 100V AC 50/60Hz (100V AC to 240V AC voltage sensing) Power Consumption 17W (UR5DJ, UR5DA, UR5DAX) 10W (UR5J, UR5A, UR5AX) Dimensions 482(W) x 44(H) x 210(D) mm Weight 2.9kg (UR5DJ, UR5DA, UR5DAX) main body only 2.6kg (UR5J, UR5A, UR5AX) main body only Accessories Two 1/2 wavelength dipole antennas (CR493N)

*Transmitter

UT5J UT5JP

Beltpack transmitter with small body for extensive use 10mW RF output power and tuned 1/4 wavelength antenna achieve stable operation even when you wear it close. Approximately 8 hours continuous operation on one 9V alkaline dry cell battery(6LF22). Screwdriver is enclosed inside the transmitter unit. A good selection of microhones that are popular with the professionals. Model for each legal band in Japan(AX, A, B) is available. Request for specially made microphone is welcome.

Specifications : Maxon Synth 5 Series - UT5AX P / UT5A P / UT5J P, UT5AX / UT5A / UT5J Wireless Transmitter Model No. UT5AX P, UT5AX UT5A P, UT5A UT5J P, UT5J Carrier Frequency Range 779.125MHz - 787.875MHz 125KHz steps 797.125MHz - 805.875MHz 125KHz steps 806.125MHz - 809.750MHz 125KHz steps Type of Emission F3E Oscillator Crystal-controlled PLL synthesizer Modulation Reactance system RF Output 10mW Antenna 1/4 wavelength whip antenna Operating Range Approximately 50 - 100 meters (line of sight) from receiving antennas Input Connector HIROSE 6-pin (microphone connector : HR10A-7P-6S) Current Consumption 55mA max. (9VDC) Battery Life 8 hours min. on the battery stipulated bellow (continuous operation at 25 degrees centigrade) Battery Requirements TOSHIBA 9V alkaline dry cell battery (6LF22) x 1 Maximum Input -5dB(microphone input) +10dB(instrument input) (0dB = 0.775 Vrms) Operating Temperature 0 - 50 degrees centigrade Weight (battery included) UT5 P : 135g (microphone not included) UT5 : 140g (microphone not included)

*Antenna Distributor

D8AB

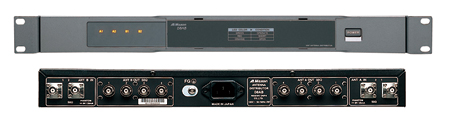

Up to four R8 Series receivers can be connected along with either two or four antennas. Antenna indicator on the front panel to check the current connection status of antenna and antenna cables. The security cover hides the front panel controls to provide security and good look, especially when the unit is mounted on a rack.

Specifications : Maxon D8 Series - D8AX / D8AB Antenna Distributor Model No. D8AX D8AB Type Type AX(FPU-2 Band) Type A(FPU-4 Band) / Type B Frequency Range 779MHz - 788MHz 797MHz - 810MHz Distributions Distributor A : Antenna A In 1-2, Antenna A Out 1 - 4 Distributor B: Antenna B In 1-2, Antenna B Out 1 - 4 RF Gain 0dB +-2dB max. Noise Figure 10dB max. Antenna Input Four 50 ohm BNC-J connectors (A, B) 9V DC 25mA(maximum) external antenna phantom power output Antenna Output Eight 50 ohm BNC-J connectors (four A, four B) Maximum Input Level 110dB micro V Operating Temperature 0 - 50 degrees centigrade Power Supply AC100V 50/60Hz AC100V - AC240V Voltage Sensing Switching Power Supply Power Consumption 8W / AC100V Dimensions 479(W) x 44(H) x 213(D) mm (main unit only, not including connectors, knobs, rubber feet, power cord and other protruding parts) Weight 2.4Kg Accessories Power cord User's Guide Warranty Certificate

*Active Powered Antenna

	Specifications : Maxon Wall Mount Powered Antenna ANW8AX/ANW8AB  Model No. ANW8AX ANW8AB  Type For Type AX For Type A and Type B  Frequency Range 779MHz - 788MHz 794MHz - 810MHz  Antenna 1/2 wavelength dipole  Antenna +8dB(dipole ratio including booster gain)  Controls Attenuator Switch 0dB/-10dB/-20dB  Indicator Phantom power LED  V.S.W.R 2.6 max.  Antenna Output 50 ohm BNC-J connector  Operating Temperature 0 - 50 degrees centigrade  Power Supply 7 - 12 V DC 20mA max.(at DC8V) Supplied from receiver or distributor main antenna connector  Dimensions 70(W) x 120(H) x 110(D) mm  Weight 300g  Installation Hole Pitch 83.5mm
Active powered antenna for more reliable wireless system operation Supports electrical box installation Dipole antenna with built-in booster amplifier 0dB/-10dB/-20dB attenuator for reduction of interference Equipped with LED to check phantom power supply
	Specifications : Maxon Portable Powered Antenna EA802AX / EA802AB  Model No. EA802AX EA802AB  Type For Type AX For Type A and Type B  Frequency Range 779MHz - 788MHz 794MHz - 810MHz  Antenna 1/2 wavelength dipole(CR493BNC)  Antenna Input 50 ohm BNC-J connector  Relative Gain +8dB(dipole ratio including booster gain)  Control Attenuator Switch 0dB/-10dB/-20dB  Indicator Phantom power LED  V.S.W.R 2.6 max.  Antenna Output 50 ohm BNC-J connector  Operating Temperature 0 - 50 degrees centigrade  Power Supply 7 - 12 V DC 20mA max.(at DC8V) Supplied from receiver or distributor main antenna connector  Dimensions 82(W) x 150(H) x 31(D) mm 82(W) x 350(H) x 31(D) mm (including antenna)  Weight 400g(including antenna)  Microphone Stand  Installation Screws 5/8 inch, 27UNS(SHURE type)
Active powered antenna for more reliable wireless system operation Supports microphone stand installation Dipole antenna with built-in booster amplifier 0dB/-10dB/-20dB attenuator for reduction of interference Equipped with LED to check phantom power supply
