PS2

JAN : 45156150003408
UPC : 840433000433

PS2 Power Supply is a large-capacity DC power distribution system for effect pedals.
PS2 consists of AC2009 Adaptor, PD2 Power Distributor and DC cords.
Provides power for up to 7 effect pedals with maximum 2000mA.
PS2’s compact-sized body makes it easily adaptable to almost any pedalboard.
By adding an optional PD2, PS2 can provide power for up to 13 effect pedals.
Auto-voltage sensing allows operation on 100VAC-240VAC, making PS2 perfect for
worldwide touring musicians. Main countries’ safety standard approved.
Employs DC voltage stabilizer and over-current protector with auto-restoration method.
10 pcs. of DC cord with 5 different lengths are included to make your wiring easy.
Employs an easy-to-see blue LED status indicator for power condition (on/off).

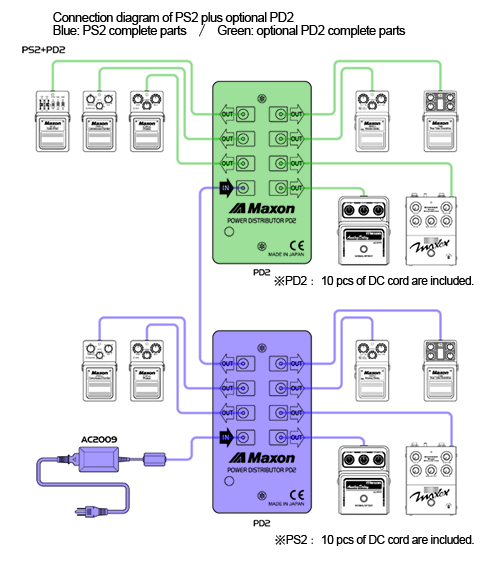

　　　　　　　　　　　　　■Connection diagram■

■PD2 / POWER DISTRIBUTOR■
DC IN	×1 center negative (-), Sleeve positive (+) Suitable plug size : internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm
DC OUT	×7 center negative (-), Sleeve positive (+) Suitable plug size : internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm
POWER LED	×1(blue)

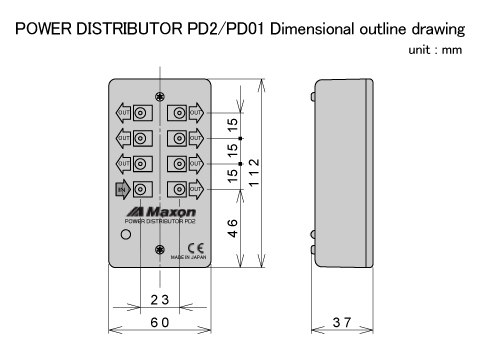

Dimension	60(W)×112(D)×37(H)mm
Weight	approx. 180g

■AC2009 / AC Adaptor■
Input	100 - 240V～, 50-60Hz, 0.6A (AC100V～, 50-60Hz, 36VA)
Output	DC9V　2.0A
DC plug	center negative (-), Sleeve positive (+) Suitable plug size: internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm
Dimension	50(W)×80(D)×31(H)mm
Weight	approx.185g
Accessory power supply cord	AC cord: x 1.
	AC plug type of AC2009 varies with the suffix as shown below. AC2009 AN for Australia, New Zealand AC2009 C for China AC2009 J for Japan AC2009 K for South Korea AC2009 N for USA, Canada AC2009 U for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Sweden, Switzerland, etc. AC2009 UK for United Kingdom
	Weight：Part No. ACCJ for Japan approx. 80g (Weight differs depending on the AC cord type.)

■Accessory DC cord■ 　Angle-type at both ends, plug size: internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm
DCC65AA	×2. / AA-type approx. 65cm
DCC55AA	×2. / AA-type approx. 55cm
DCC45AA	×2. / AA-type approx. 45cm
DCC35AA	×2. / AA-type approx. 35cm
DCC25AA	×2. / AA-type approx. 25cm

■Optional Power Supply Cord■ 　Price：　JPY 1,500（excluding tax）　Part No. Major Country
ACCJ	Japan
ACCAN	Australia, New Zealand
ACCC	China
ACCK	South Korea
ACCN	USA, Canada
ACCU	Austria,Belgium,Denmark,Finland,France, Germany,Italy,Netherlands,Norway,Sweden,Switzerland, etc.
ACCUK	United Kingdom

■Optional DC Cord■ 　Price：　JPY 500（excluding tax）

	Plug type: Angle / Angle Plug size: internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm DCC65AA : AA-type approx.65cm DCC55AA : AA-type approx.55cm DCC45AA : AA-type approx.45cm DCC35AA : AA-type approx.35cm DCC25AA : AA-type approx.25cm

	Plug type: Straight / Angle Plug size: internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm DCC65SA : SA-type approx.65cm DCC55SA : SA-type approx.55cm DCC45SA : SA-type approx.45cm DCC35SA : SA-type approx.35cm DCC25SA : SA-type approx.25cm

	Plug type: Straight / Straight Plug size: internal dia. 2.1mm / external dia. 5.5mm / length 9.5mm DCC65SS : SS-type approx.65cm DCC55SS : SS-type approx.55cm DCC45SS : SS-type approx.45cm DCC35SS : SS-type approx.35cm DCC25SS : SS-type approx.25cm

　※Specifications are subject to change without notice.
