EFFECTS






  JAN : 4515615007833
UPC : 840433002055

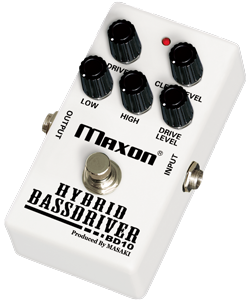

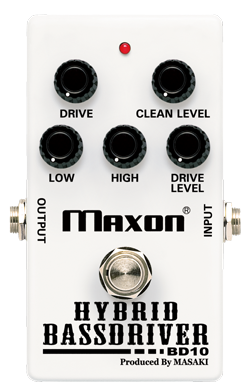

  • The BD10 Hybrid Bass Driver was designed in cooperation with prominent Japanese Bassist Masaki
    The BD10 features an expressive tonality with strong yet articulate distortion that
    accentuates fast playing techniques such as multi-finger picking and two-handed tapping.

  • The BD10 features independent Level controls for the Clean and Drive signals.
    This allows the user to “fine tune” the balance between clean and distorted signals to obtain
    the ideal mix that compliments their individual playing technique.

  • Thorough research was conducted on Masaki’s equipment to find the ideal distortion type for Bass Guitar. The BD10’s distortion provides harmonically-rich saturation with long sustain and retains note clarity
    and expressiveness even at maximum settings.

  • The word “Hybrid” in the pedal title refers to the joint development effort
    which combined Masaki’s great skill and knowledge of the Bass Guitar with Maxon’s proven and
    trusted reputation in the field of Effects.

  • LED to indicate bypass/effect and battery condition for trouble-free performance.

  • Operates with 9V battery or standard AC adaptor for 9V (not included).

  • MADE IN JAPAN





  Input Impedance   500k ohms
  Output Impedance   10k ohms
  Maximum Gain   38dBu (120Hz)
  Input Noise   -118dB or less (Input shorted, IHF-A weighted)
  Control   DRIVE, LOW,HIGH,DRIVE LEVEL,CLEAN LEVEL
  Switch   BYPASS/EFFECT
  Indicator   BYPASS/EFFECT LED
  Power Supply   6F22/6LF22 9V battery x 1 or Maxon AC adaptor
  Power Consumption   19mA/9VDC
  Battery Life   9VDC manganese battery 25 hours 25 deg C (FUJITSU 6F22)
  9VDC alkaline battery 45 hours 25 deg C (TOSHIBA 6LF22)
  Dimensions   70(W)×113(D)×56(H)mm (with protrusion)
  Weight   Approx. 330g (incl. battery)
  Accessory   6F22 9V battery x 1, operating manual
 ※0dBu=0.775Vrms
 ※Specifications are subject to change without notice.
