EFFECTS







  JAN : 4515615003064
UPC : 840433000228

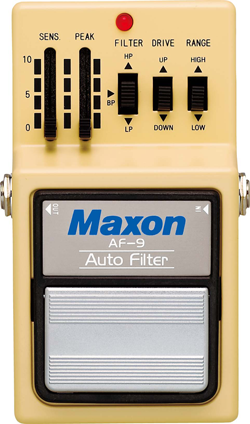

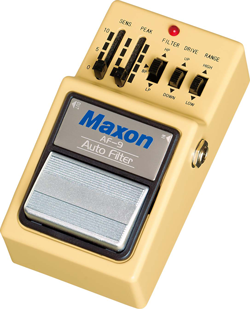

  • Fat sound auto-wah equipped with photo coupler.
    Five controls packed in a compact body allow various filter effects.

  • A jack to connect optional AC adaptor for long hours of continuous use.

  • True Bypass Switching lets your instrument's signal pass through a non-electronic bypass line
    when the effect is disengaged, feeding your amp with direct, unaltered signal from your instrument.
    Low noise mechanical switch is used for effect/normal switching.

  • Easy-access, no tools battery compartment.

  • LED to indicate normal/effect and battery condition for trouble-free performance.

  • MADE IN JAPAN





  Input Impedance   500k ohms
  Output Impedance   10k ohms
  Speed Frequency   100Hz - 2kHz(low)
  200Hz - 4kHz(high)
  Residual Noise   -95dB or less (input shorted IHF-A weighted)
  Control   SENS. ,PEAK
  FILTER(HP/BP/LP),DRIVE(UP/DOWN),RANGE(HIGH/LOW)
  Power Supply   6F22/6LF22 9V battery x 1 or Maxon AC adaptor
  Power Consumption   17mA / 9VDC,19mA / 10VDC
  Dimensions   74(W)×124(D)×54(H)mm
  Weight   580g (including battery)
  Accessory   6F22 9V battery x 1, operating manual

 ※0dBu=0.775Vrms
 ※Specifications are subject to change without notice.
